Galvanized Steel Coil

Product DescriptionHot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle iron and steel parts first. In order to remove iron oxide on the surface of iron and steel

Send Inquiry

Products Description

Hot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle iron and steel parts first. In order to remove iron oxide on the surface of iron and steel parts, after pickling, it is cleaned in an ammonium chloride or zinc chloride aqueous solution or a mixed solution of ammonium chloride and zinc chloride.And then sent to the hot-dip plating bath.Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.

Specification

Technical Standard	EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel Grade	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Type	Coil/Sheet/Plate/Strip
Thickness	0.11-1.2mm,or customer's requirement
Width	600mm-1500mm, according to customer's requirement
Type of Coating	Hot dipped galvanized steel coil
Zinc Coating	30-275g/m2
Surface Treatment	Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface Structure	Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Quality	Approved by SGS,ISO
ID	508mm/610mm
Coil Weight	3-20 metric ton per coil
Package	Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement.

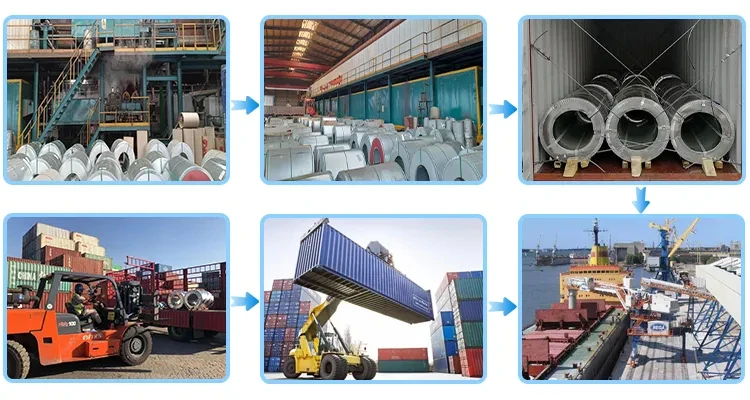

Packing & Delivery

Galvanized Steel Coil/Color coated galvanized coil
